PLAN ID: DPX682108

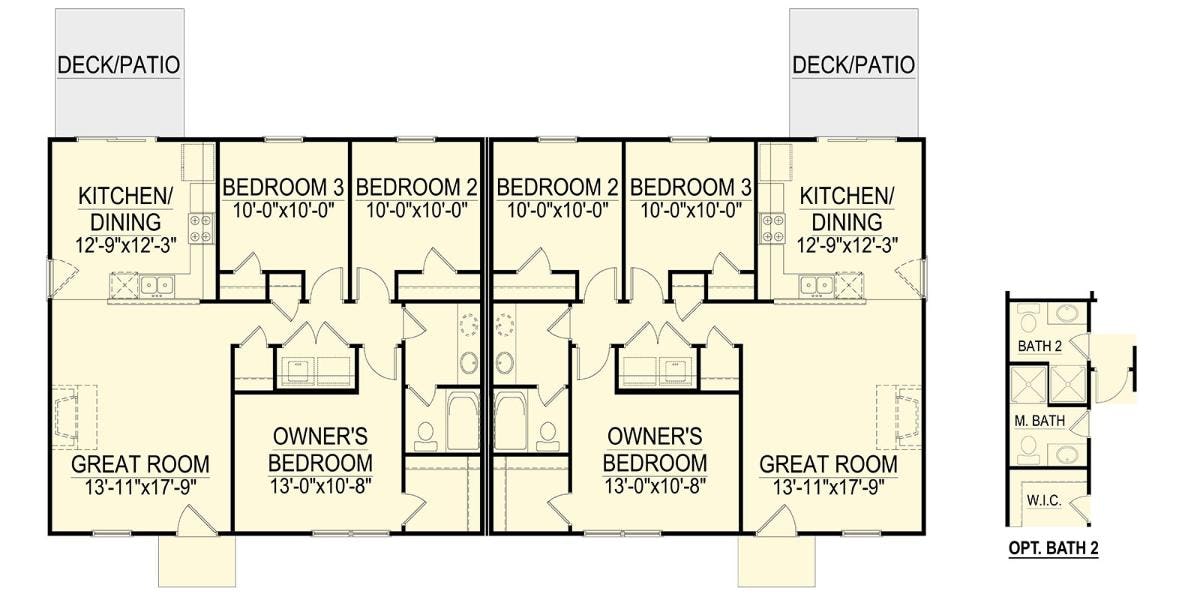

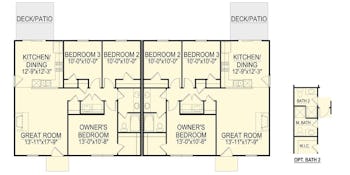

This modest duplex unit derives from a 1054sq.ft. efficient starter ranch plan. These units offer an open great room and dining/kitchen that is perfect for family interaction. The owner bedrooms offer a sizable walk-in closet and each units divided bath provides privacy and the "effect" of two baths.
Ranch, Duplex
Square Feet: 2,108
Footprint: 68-0 x 35-0

One elevation is included

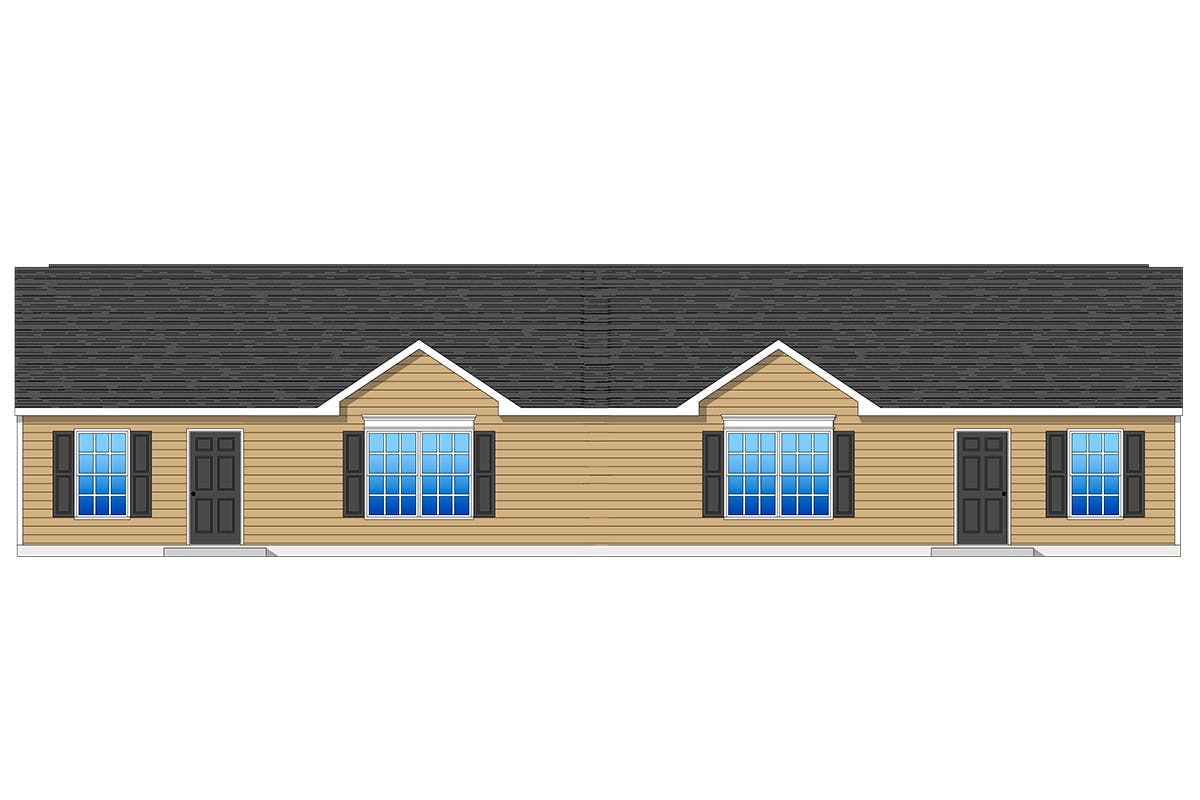

Elevation A

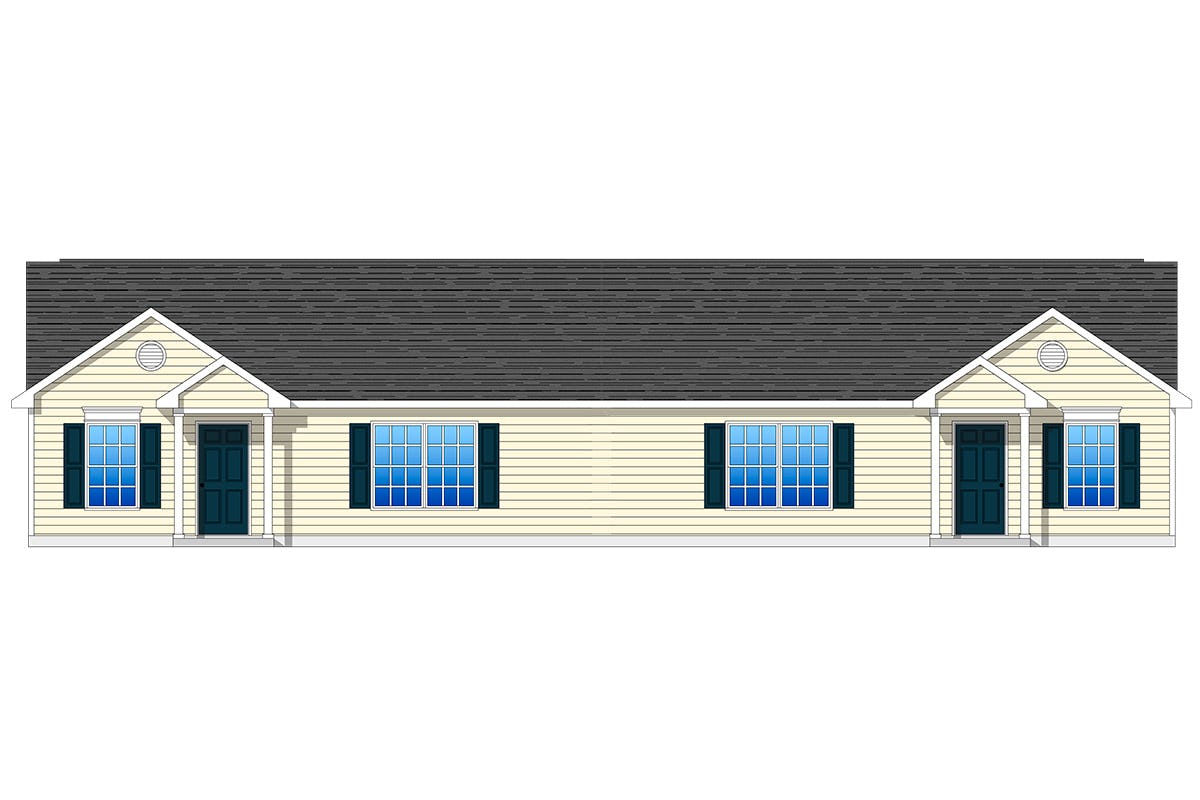

Elevation B
Elevation C

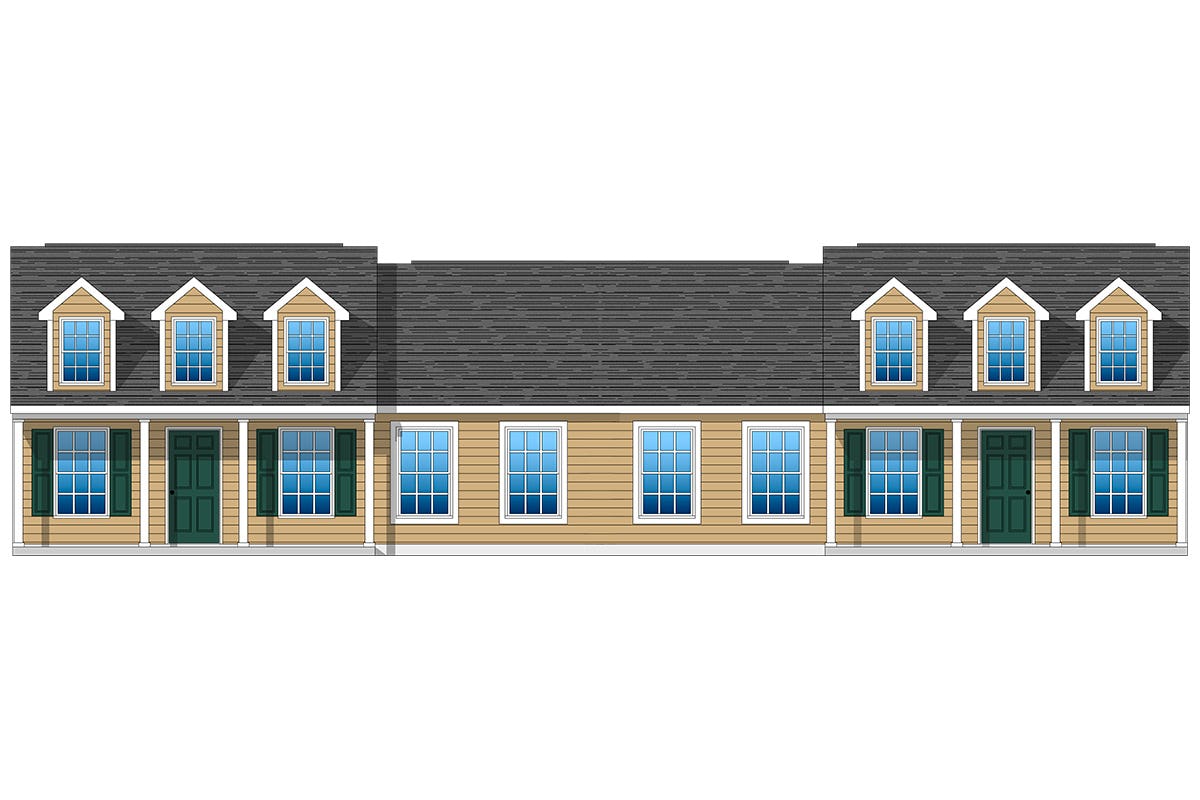

Elevation D

One foundation is included

Plan Specifications
Max Square Feet: 2,108
Base Footprint: 68-0 x 35-0
Max Footprint: 68-0 x 35-0
Owner Bedroom: 13-0x10-8
Great Room: 13-11x17-9
Bedrooms: 3
Baths: 1
Typical Roof Pitches:
  • Front To Back: 6/12
  • Return Gables: 8/12
Ceiling Heights:
  • First Floor: 8ft. w/opt. 9ft.
  • Second Floor: n/a
Included Plan Options
Great Room Fireplace, Opt. 2nd Bath
