PLAN ID: DPX802740

Each 1,370 sf unit has an open design that when combined with the cost effectiveness of a duplex unit makes this an ideal choice for any builder or investor. Each unit plan is designed with an open kitchen, dining, and great room giving you a large "feel" to the layout. Each floorplan has a study that can be utilized as bedroom 4 if desired and incorporates 3 bedrooms, 2 baths and a single-car garage.
Ranch, Duplex
Square Feet: 2,740
Footprint: 80-4 x 51-0

One elevation is included

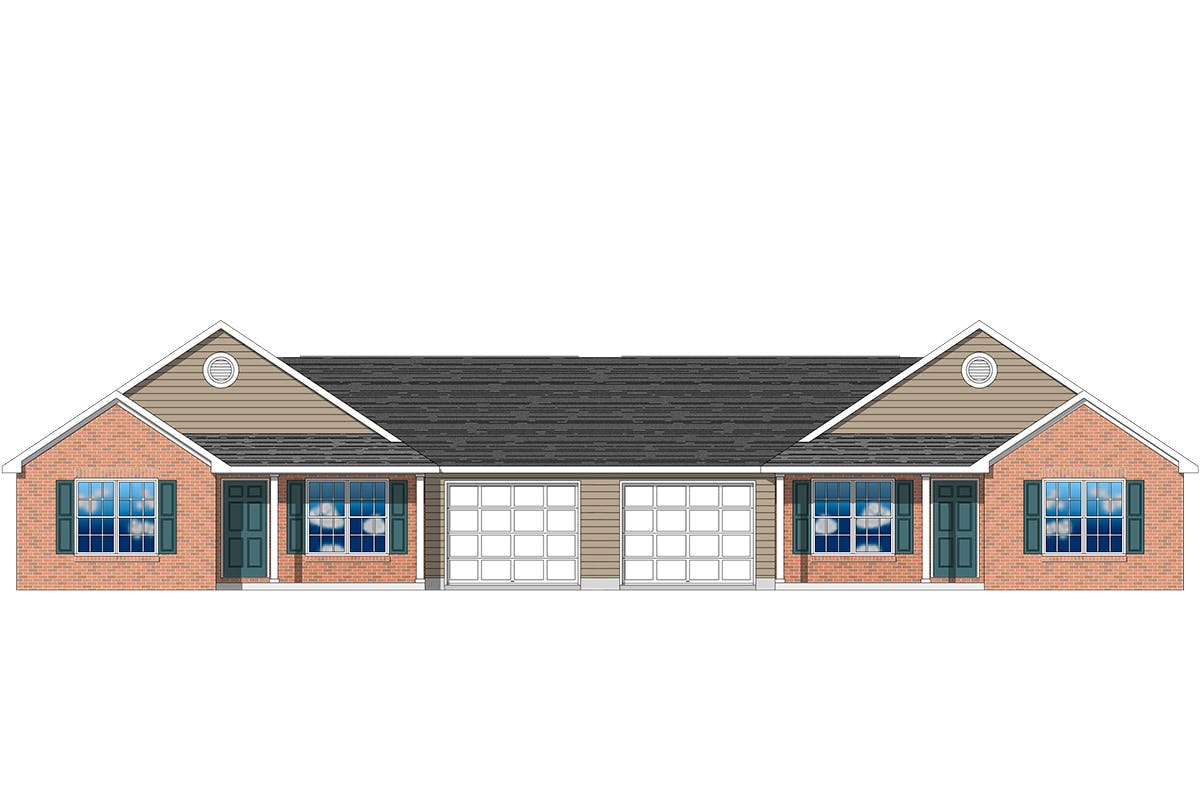

Elevation A

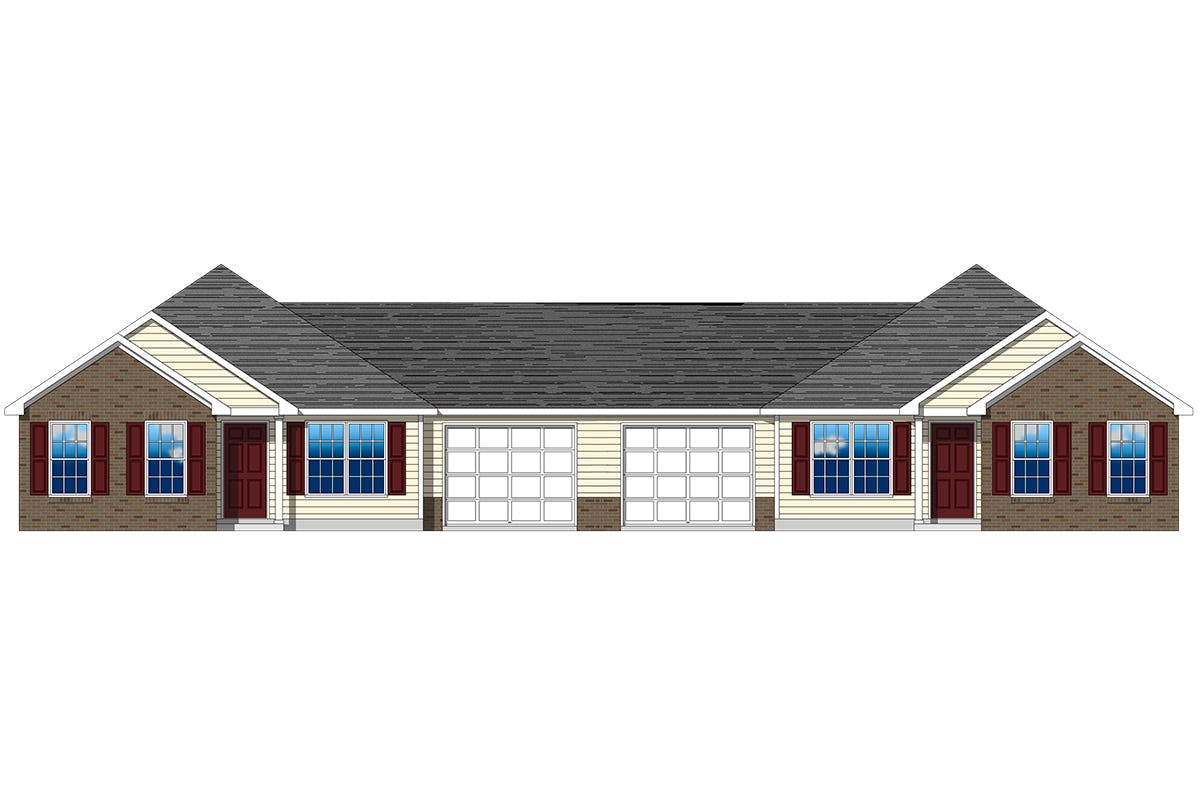

Elevation B

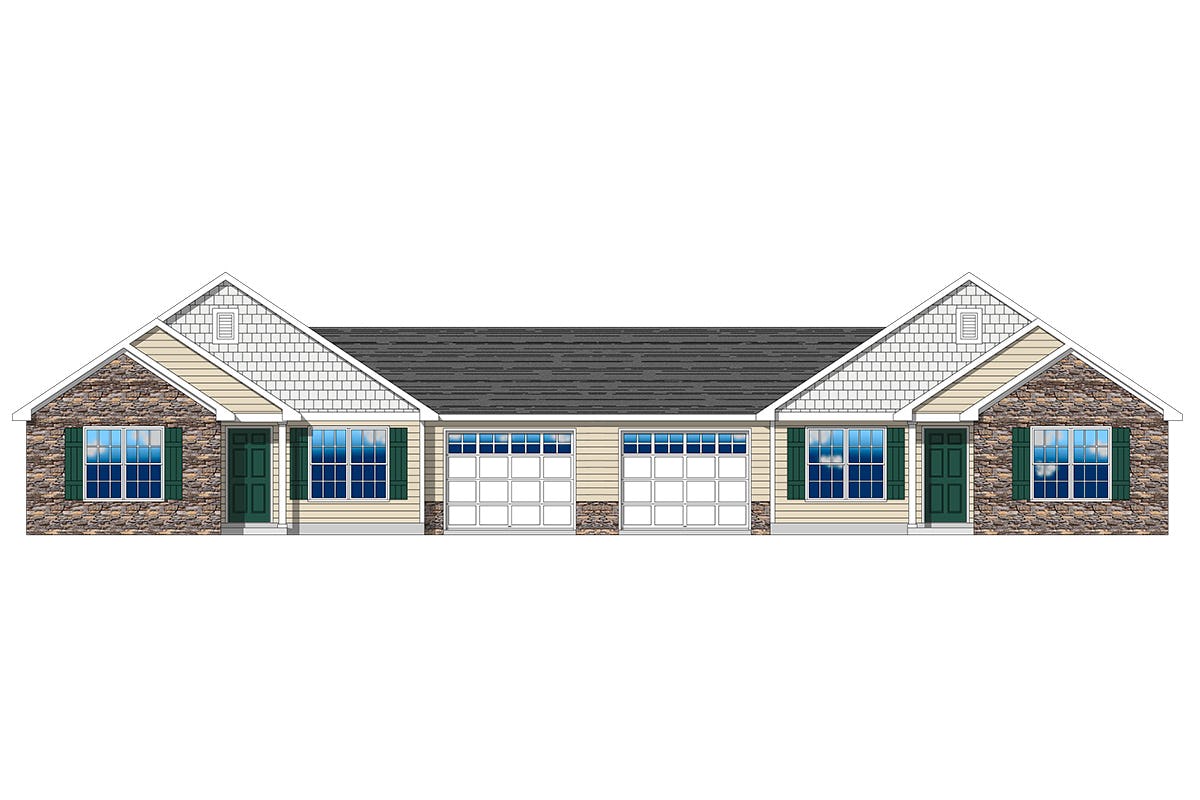

Elevation C

One foundation is included

Plan Specifications
Max Square Feet: 2,740
Base Footprint: 80-4 x 51-0
Max Footprint: 80-4 x 51-0
Owner Bedroom: 13-0x12-8
Great Room: 13-0x16-2
Bedrooms: 3
Baths: 2
Typical Roof Pitches:
  • Front To Back: 8/12
  • Return Gables: 8/12
Ceiling Heights:
  • First Floor: 8ft
  • Second Floor: n/a
Included Plan Options
Bedroom 4, Fireplace, Owner Bath Upgrade

Similar Plans

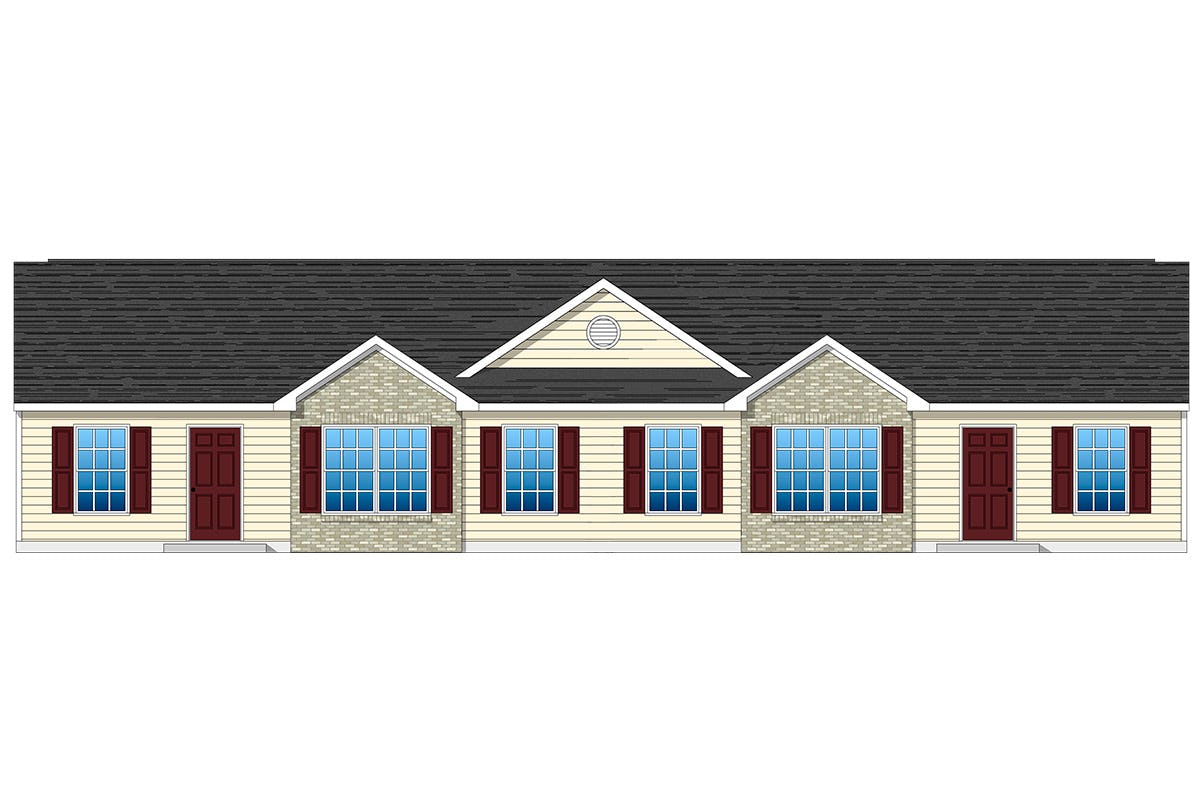

Ranch, Duplex
Sq Ft: 2,108
Max Sq Ft: 2,108
Footprint: 68-0 x 35-0

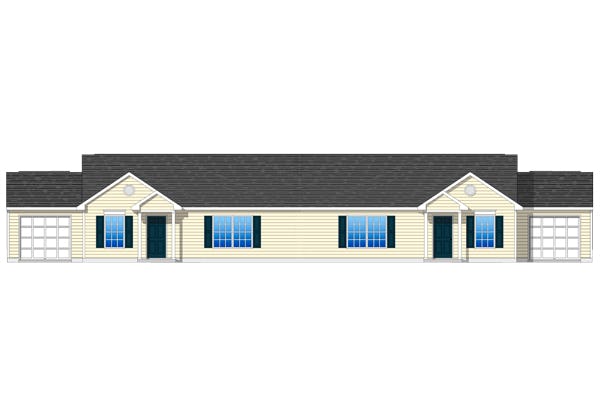

Ranch, Duplex
