PLAN ID: MV402603

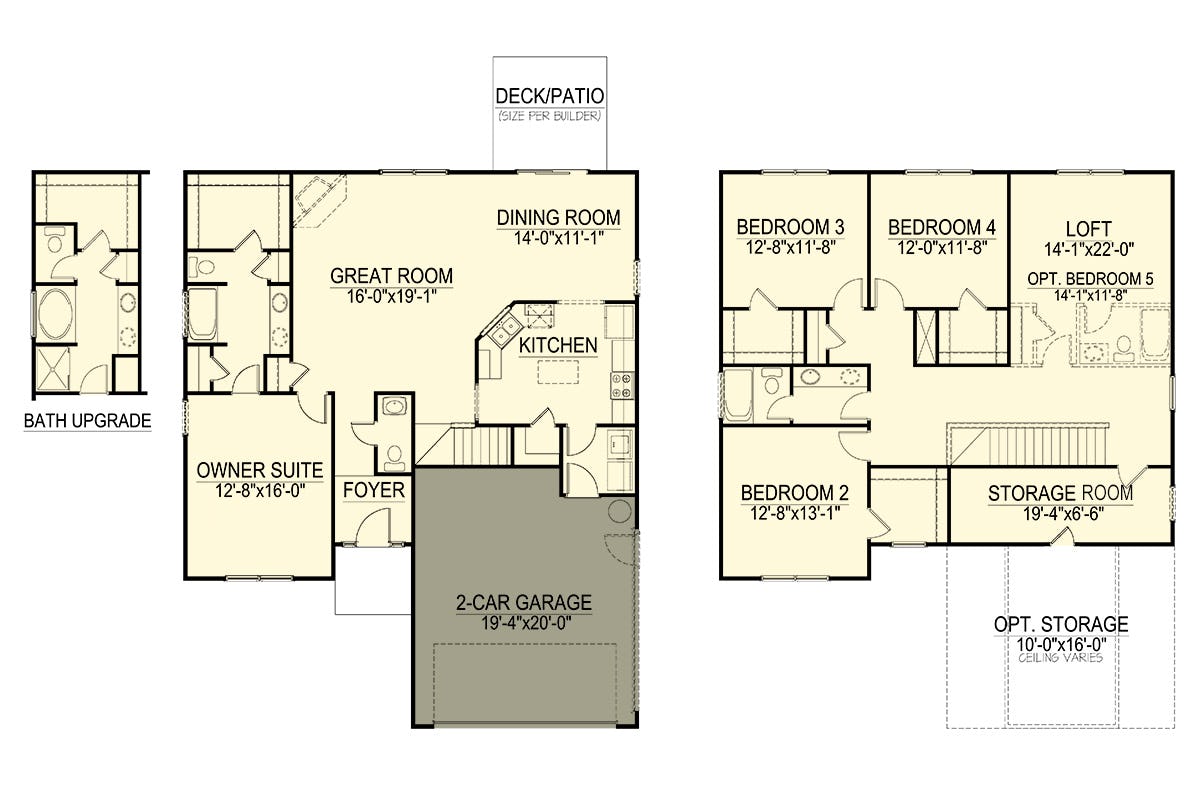

Unique First Floor Master plan. The stair case is secluded but yet in a perfect location for traffic flow. A sizable kitchen and dining area gives ample space for entertaining. Although most second floors are simple and less than exciting, this plan offers a huge loft that can be optioned into a 5th bedroom and additional bath. But the "BIG" hit is the huge finished storage room located at the top of the stair along with the secondary bedroom walk-in closets.
2-Story, First Floor Master, Mega Value Series
Square Feet: 2,603
Footprint: 40-0 x 49-0

One elevation is included

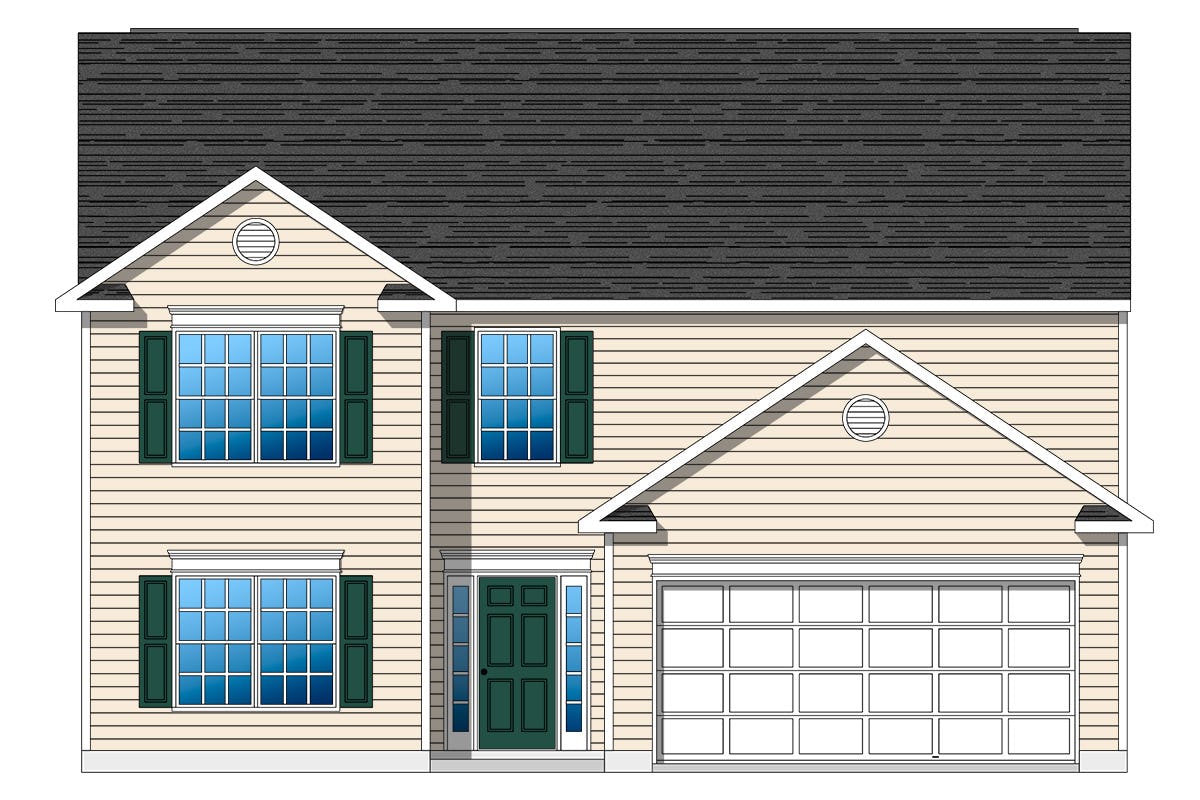

Elevation A

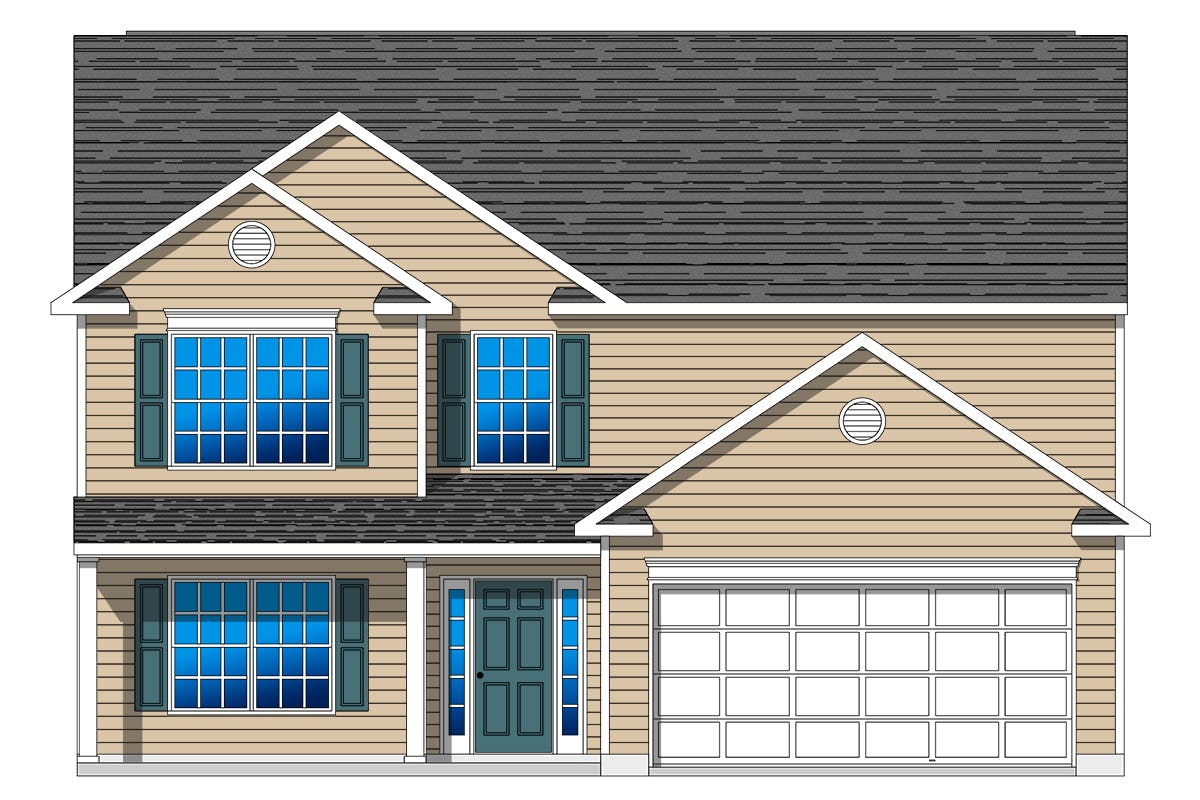

Elevation B
Elevation C

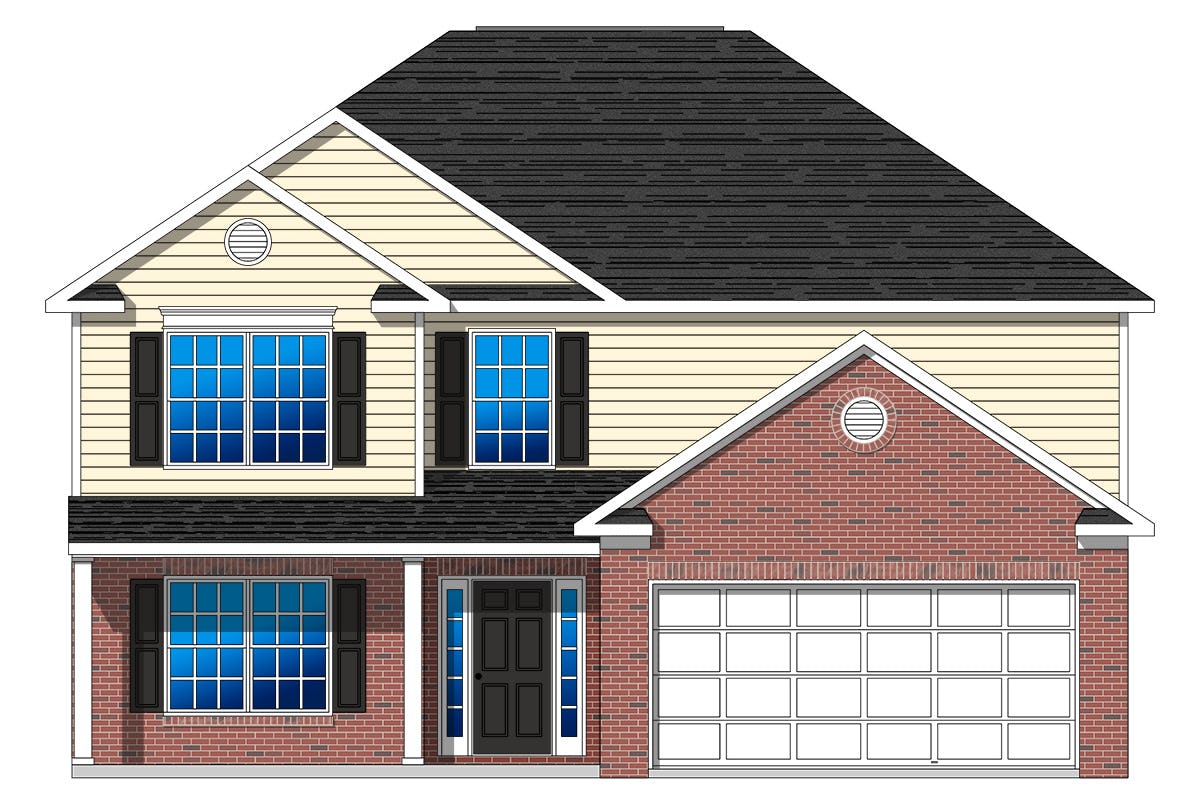

Elevation D

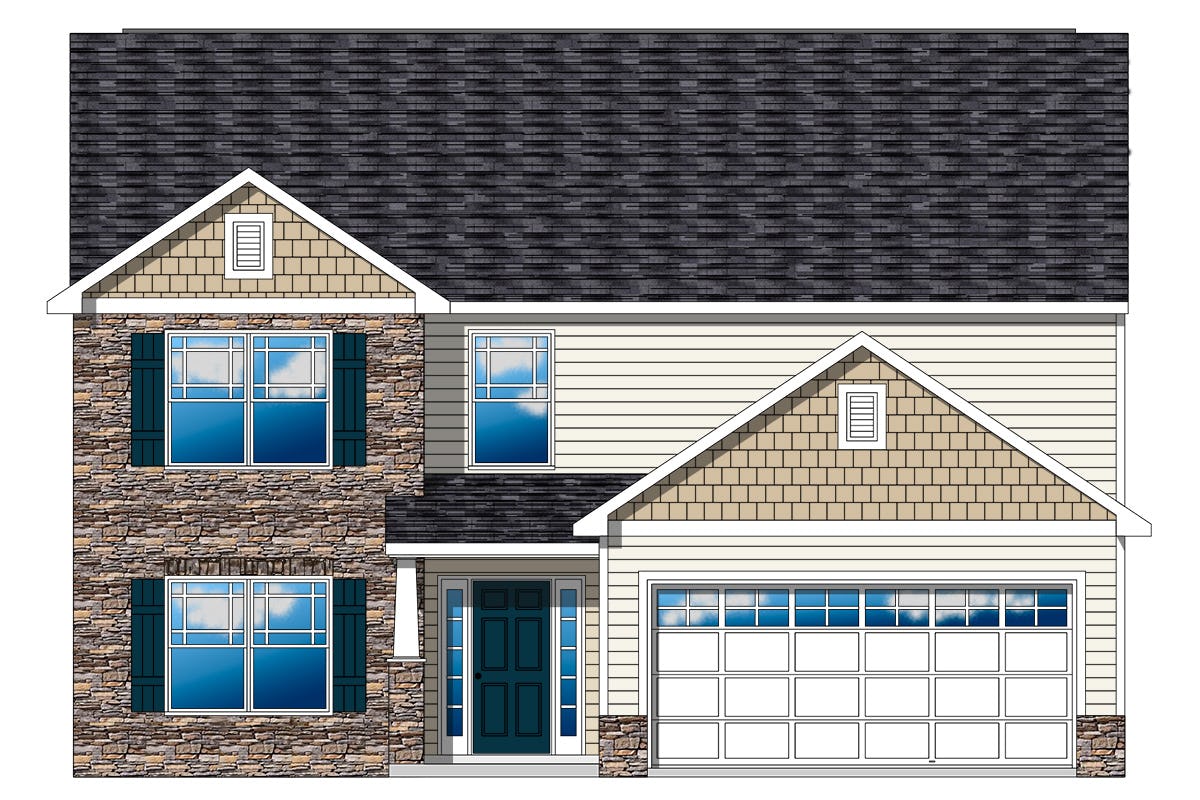

Elevation E

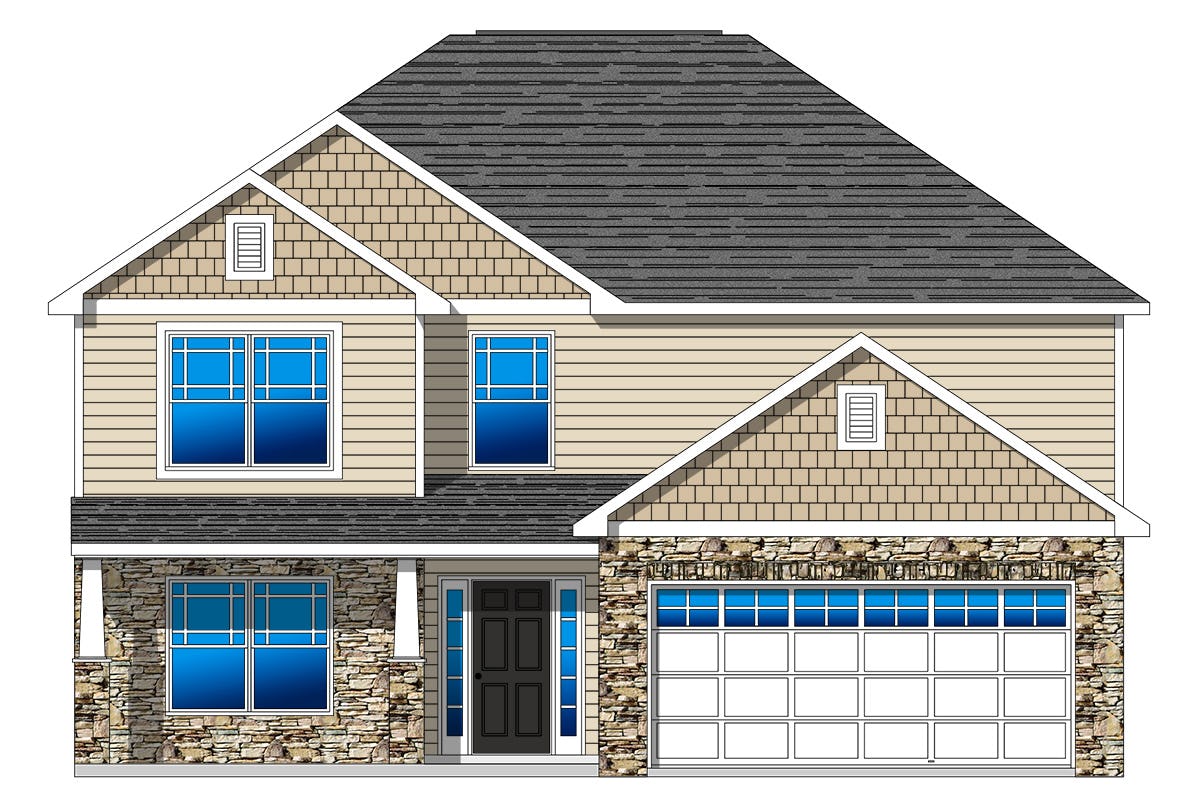

Elevation F

One foundation is included

Plan Specifications
Max Square Feet: 2,603
Base Footprint: 40-0 x 49-0
Max Footprint: 40-0 x 49-5
Owner Bedroom: 12-8 x 16-0
Great Room: 16-0 x 19-1
Bedrooms: 5
Baths: 3.5
Typical Roof Pitches:
  • Front To Back: 7:12
  • Return Gables: 8:12
Ceiling Heights:
  • First Floor: 8ft w/opt 9ft
  • Second Floor: 8ft
Included Plan Options
Optional fireplace, first floor 9 ft ceilings, side entry garage, garage service entry door, owner bath upgrade, optional bedroom 5 and 3rd full bath, optional storage area above garage can be easily built within the roof truss, misc. window options throughout.
