PLAN ID: TR462529

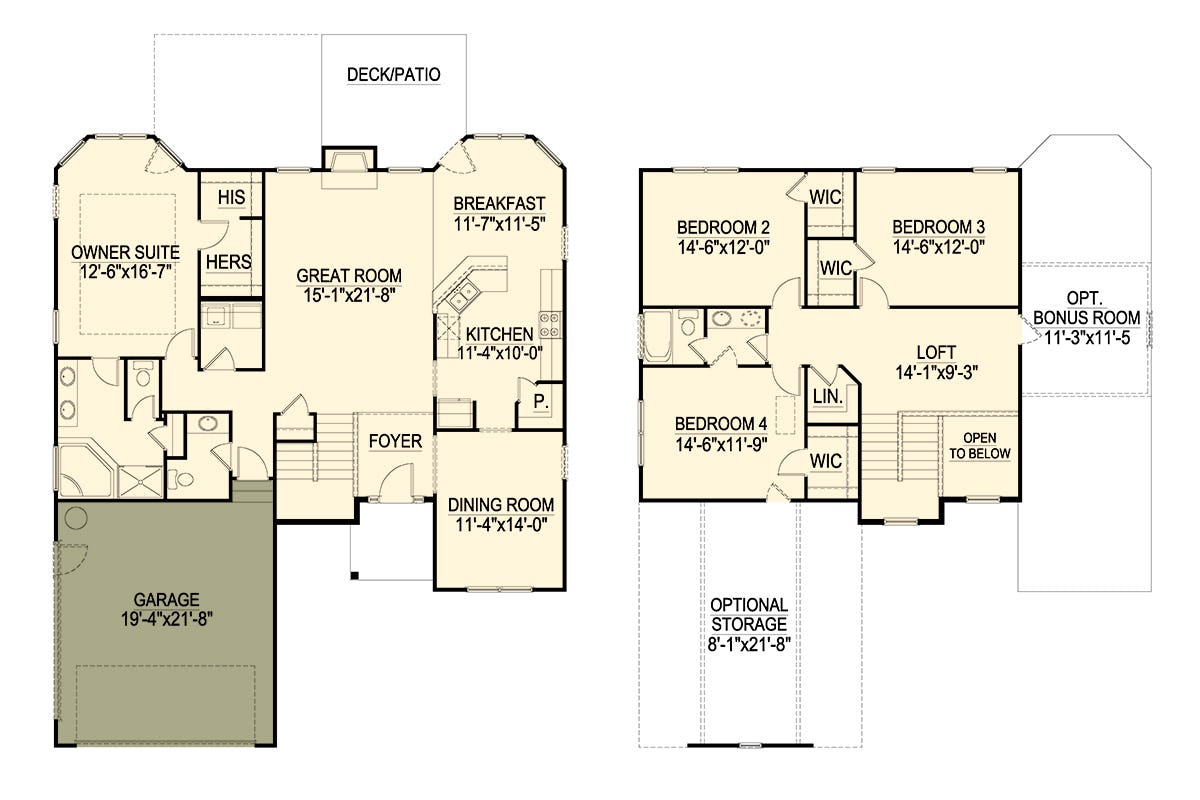

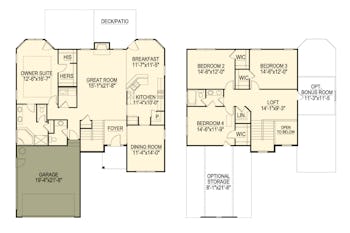

Unexpected Space! This first floor master plan offers an open appeal with extraordinary spaces while remaining very cost efficient. The second floor is usually the "chopped up" tiny bedroom approach with most semi-custom homes but not with this plan. The second floor is just as desirable as the first floor. The bedrooms are all larger than expected with each bedroom having a walk-in closet. If thats not enough there is a large walk-in linen closet and an open loft overlooking the foyer. There are numerous spaces dedicated to storage allowing each builder to determine what areas they want to offer.
2-Story, First Floor Master, Traditional Series
Square Feet: 2,529
Footprint: 46-0 x 55-0

One elevation is included

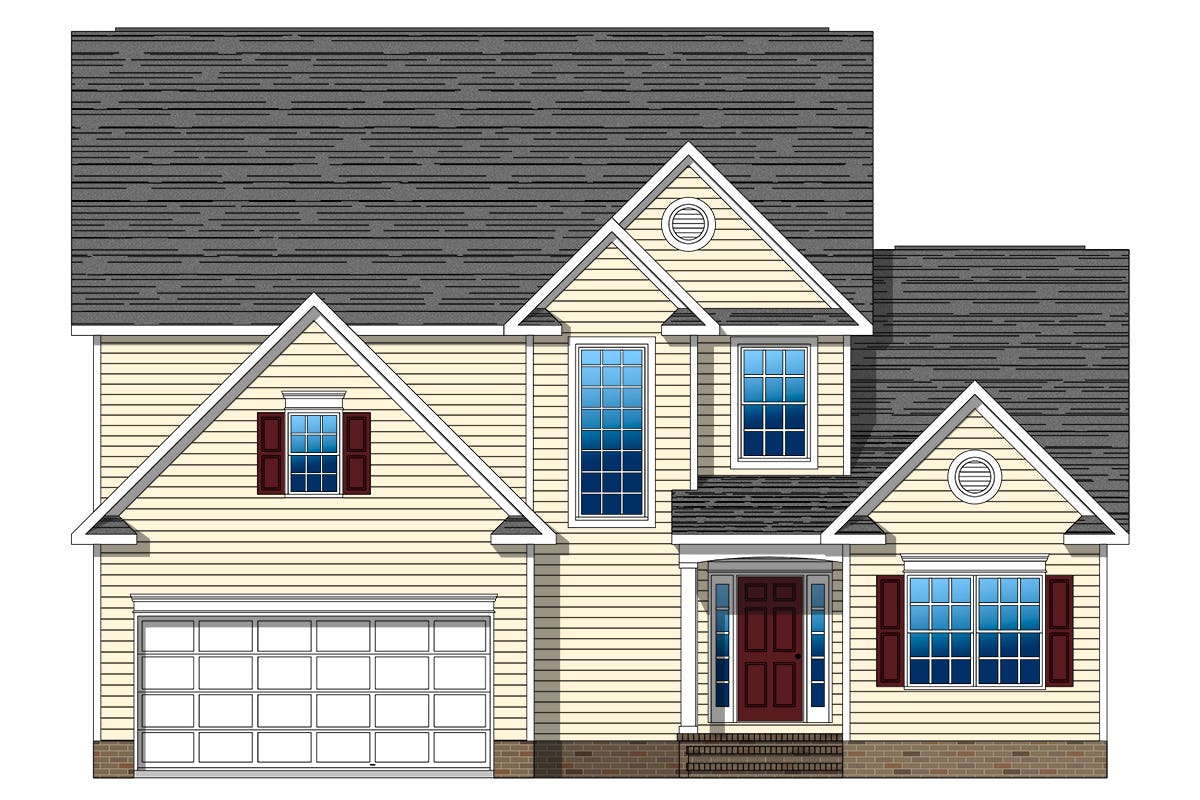

Elevation A
Elevation B

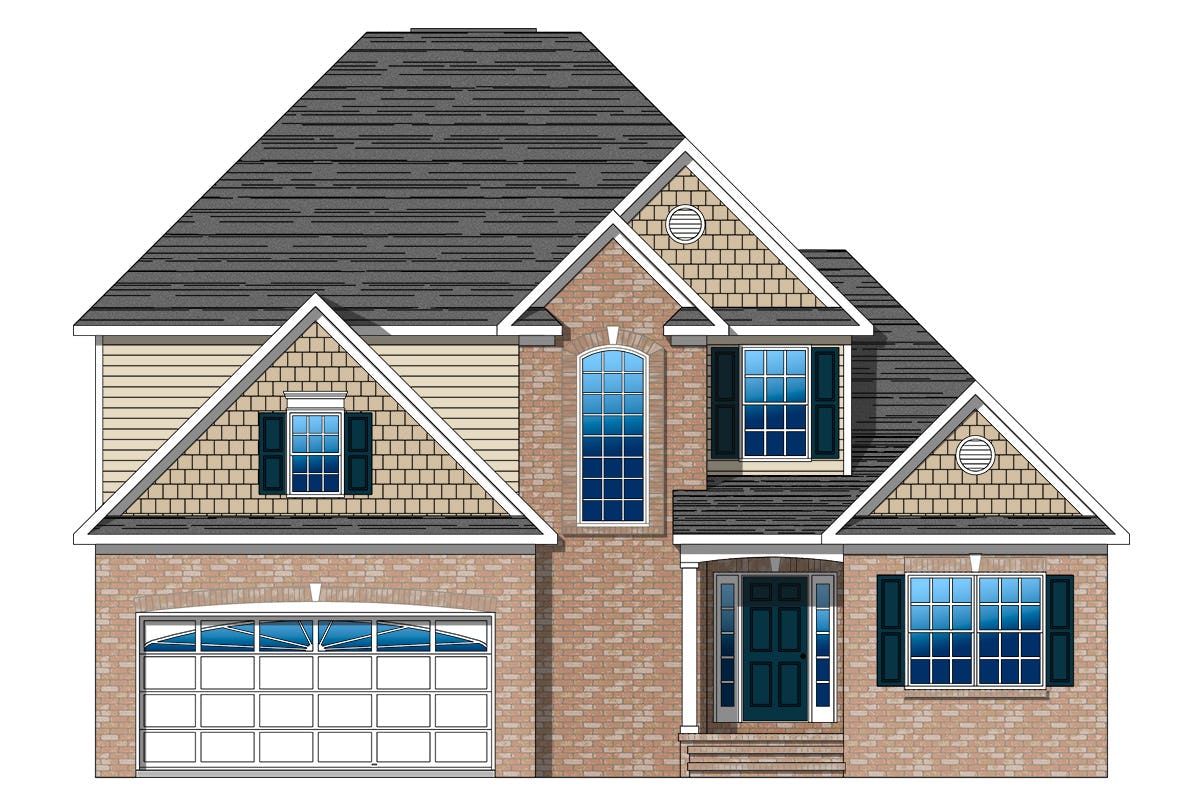

Elevation C

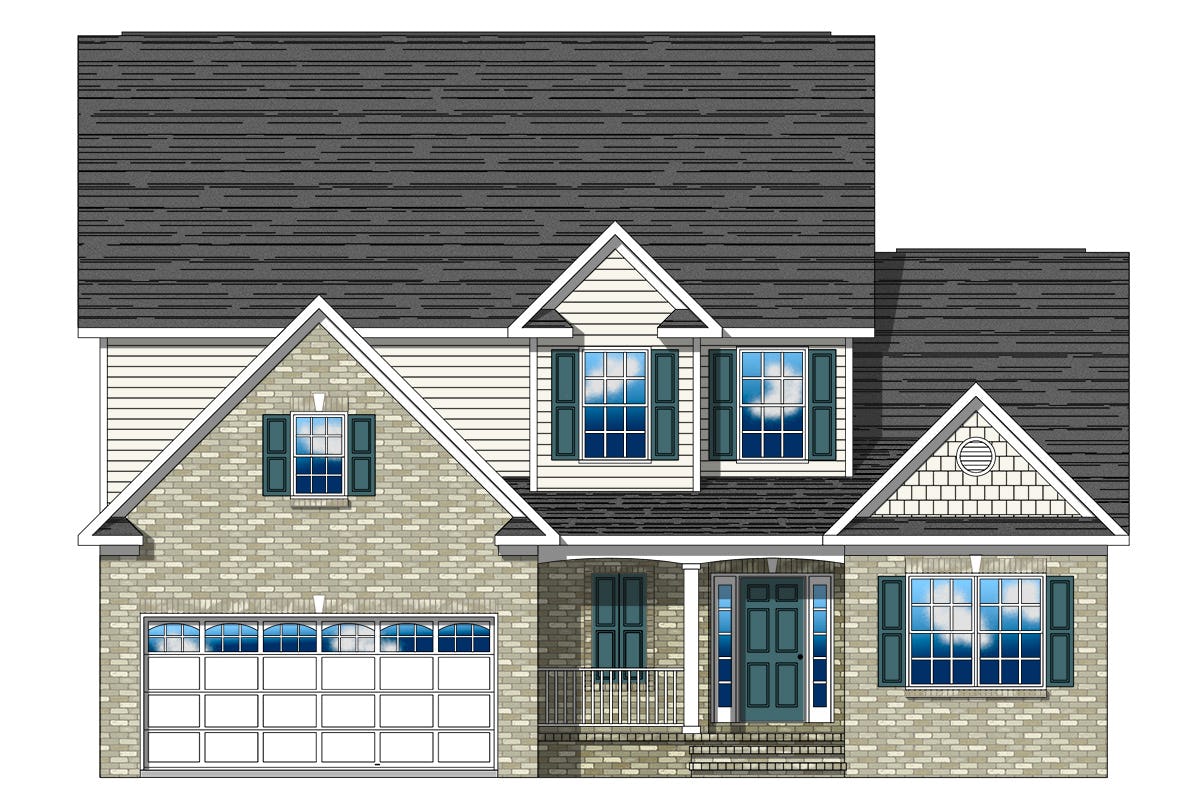

Elevation D

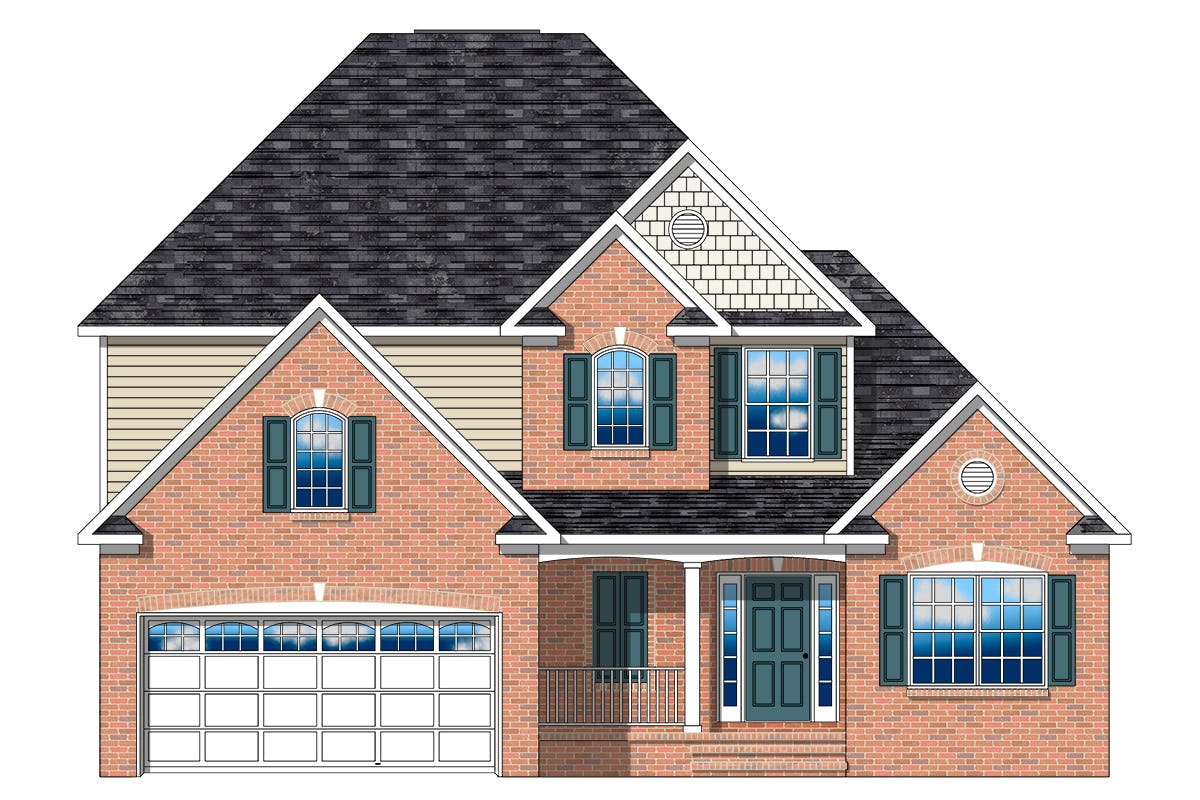

Elevation E

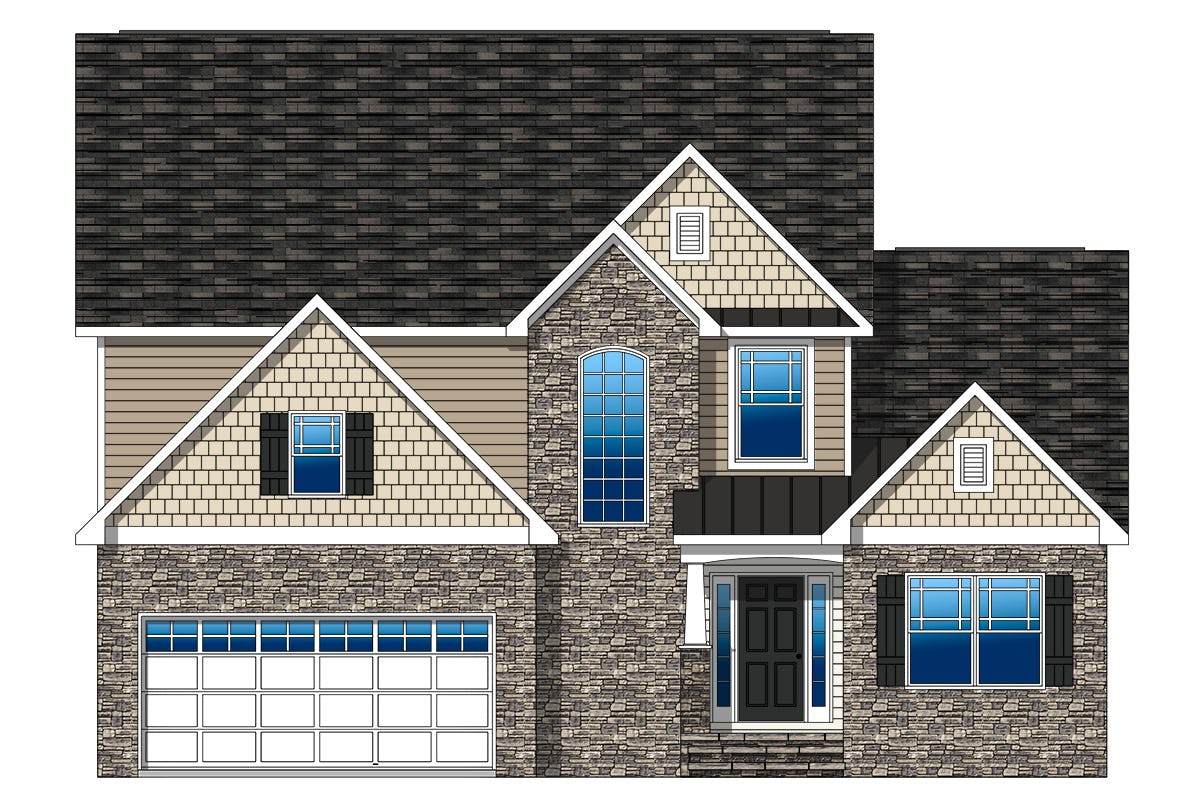

Elevation F

One foundation is included

Plan Specifications
Max Square Feet: 2,669
Base Footprint: 46-0 x 55-0
Max Footprint: 46-0 x 55-5
Owner Bedroom: 12-6 x 16-7
Great Room: 15-1 x 21-8
Bedrooms: 4
Baths: 2.5
Typical Roof Pitches:
  • Front To Back: 10/12
  • Return Gables: 12/12
Ceiling Heights:
  • First Floor: 9ft
  • Second Floor: 8ft
Included Plan Options
Misc. optional windows througout, optional storage over the garage area. Optional storage over the kitchen area that can be made into a finished room with all elevation except C and E due to the hip roof. Also affordably add a three car side load garage and/or brick veneer to all sides. Just see customization options at checkout for pricing.
