PLAN ID: TR562852

Great master down plan with extraordinary construction efficiencies. This plan offers a tradtional layout but delivers an open and "free-flowing" lifestyle to the end buyer. The huge loft on the second floor is perfect for a media area or exercise loft. This plan comes with an optional bonus design that the builder can use to bump the sf up to 3247 and provide an excellent playroom for the kids. The alternative bath layouts provide the flexibility for any size family.
2-Story, First Floor Master, Traditional Series
Square Feet: 2,852
Footprint: 56-0 x 42-5

One elevation is included

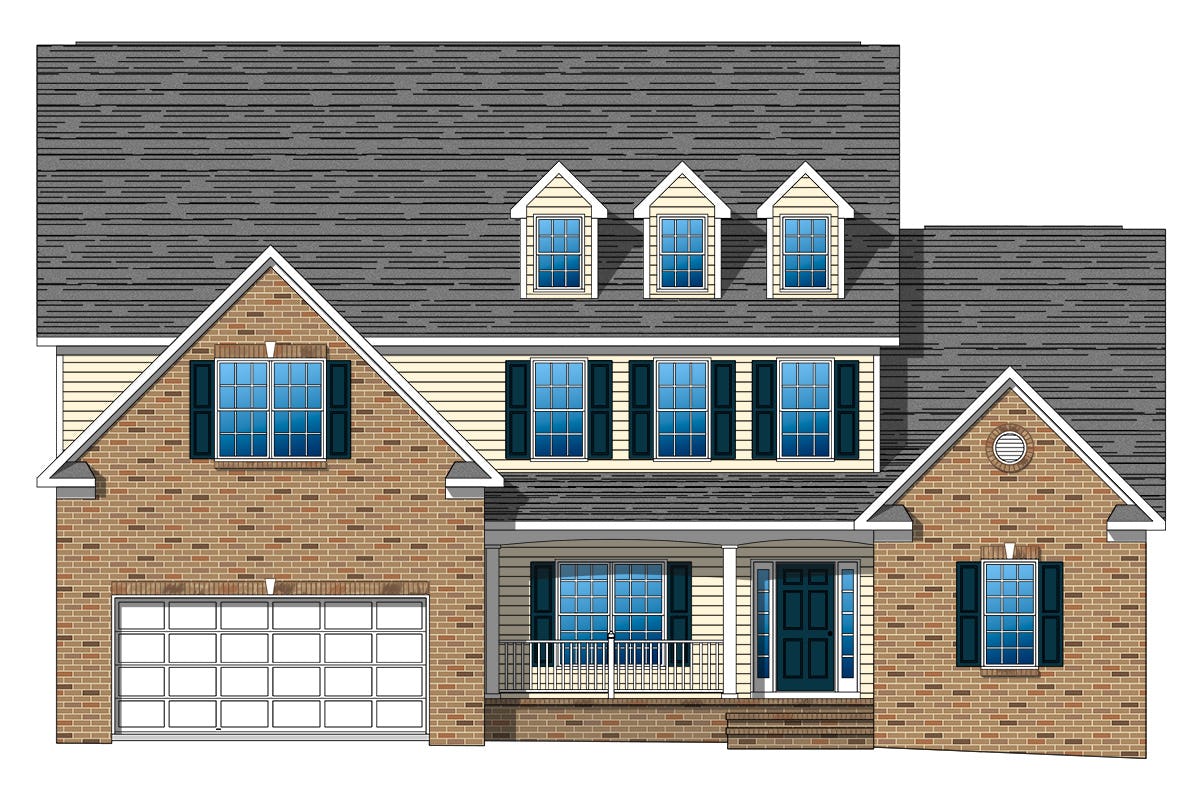

Elevation A

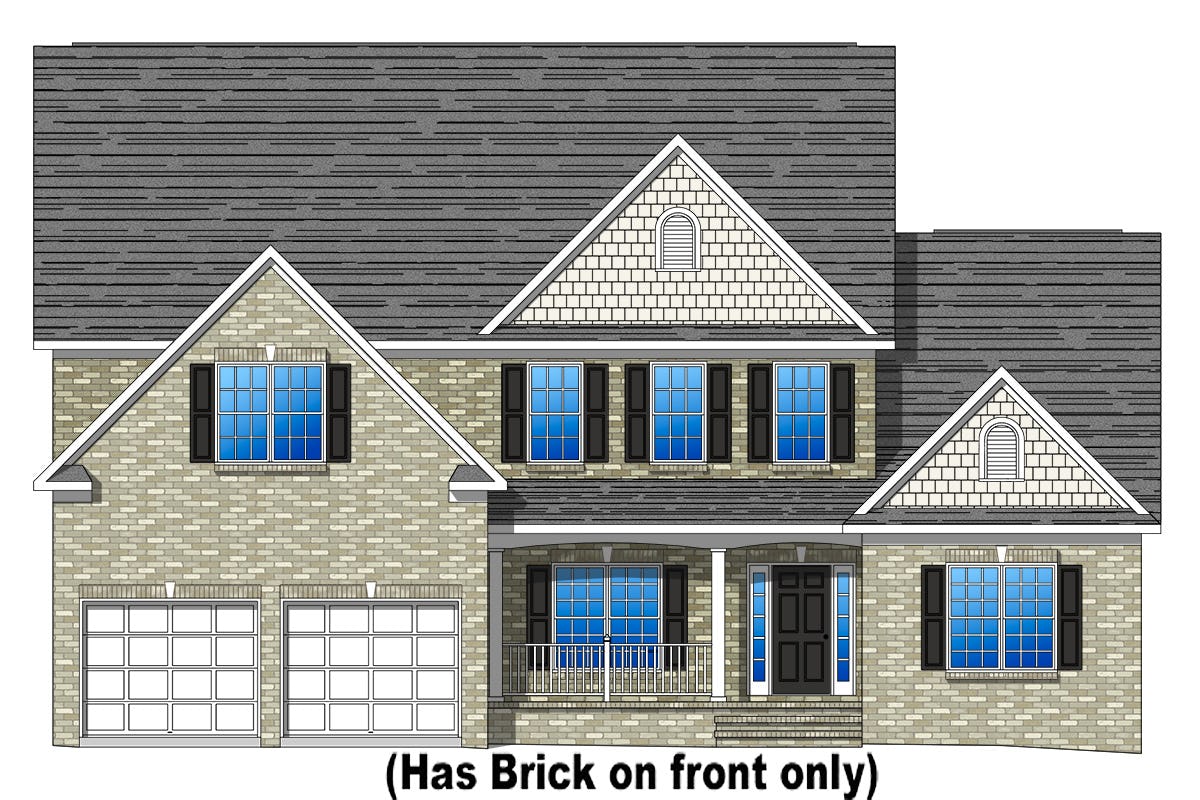

Elevation B

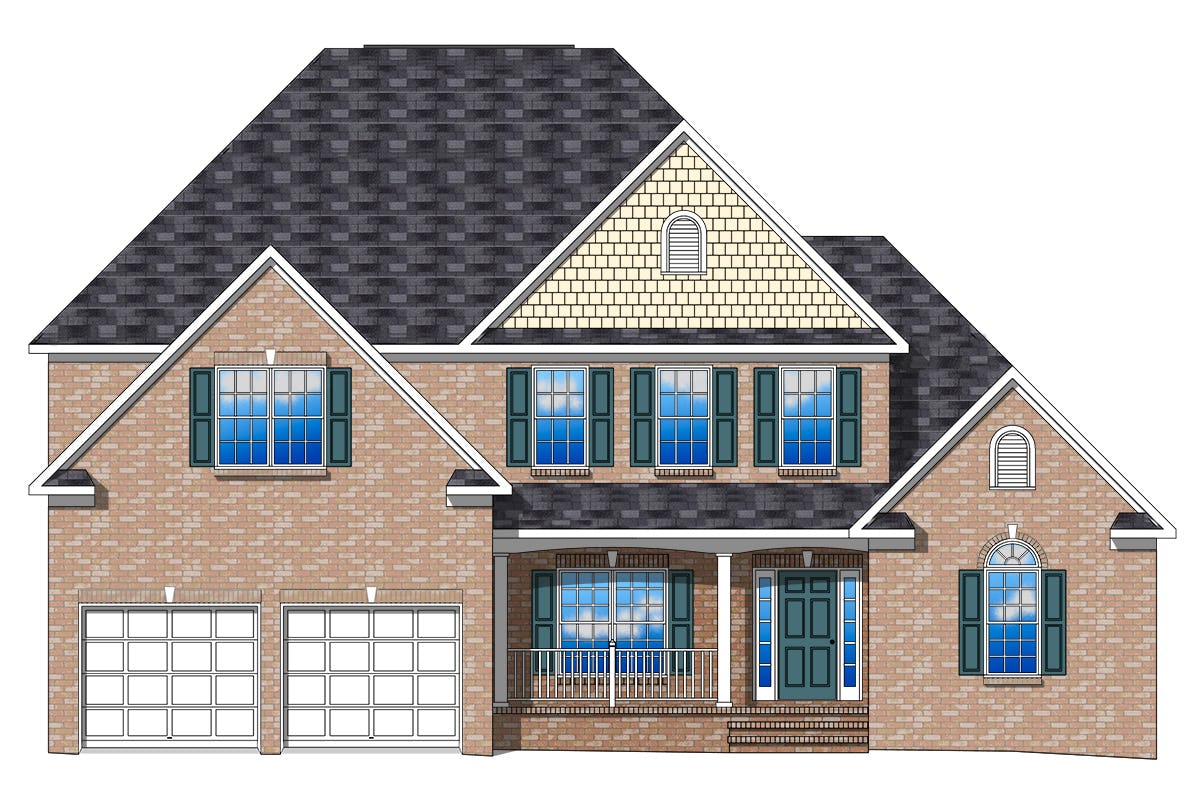

Elevation C
Elevation D

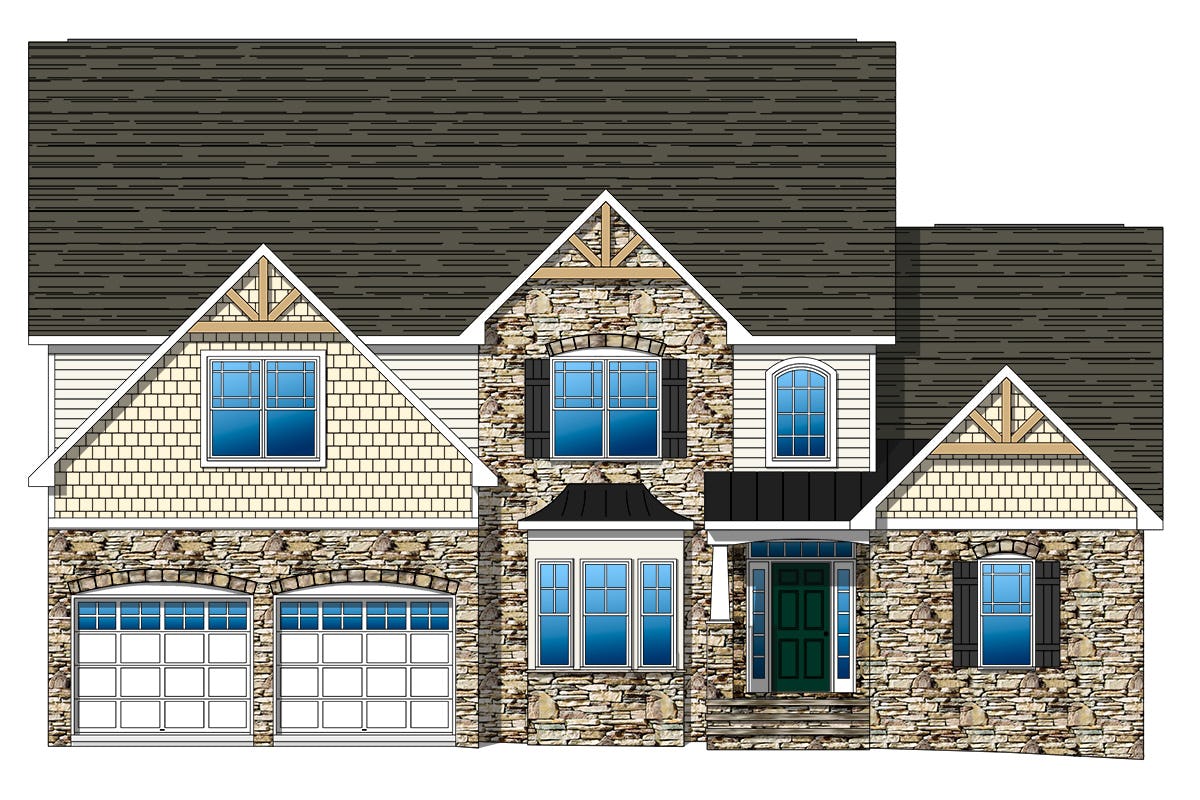

Elevation E

One foundation is included

Plan Specifications
Max Square Feet: 3,247
Base Footprint: 56-0 x 42-5
Max Footprint: 56-10 x 42-5
Owner Bedroom: 13-4 x 15-9
Great Room: 20-1 x 15-7
Bedrooms: 5
Baths: 3.5
Typical Roof Pitches:
  • Front To Back: 10/12
  • Return Gables: 12/12
Ceiling Heights:
  • First Floor: 9 ft
  • Second Floor: 8 ft
Included Plan Options
Side entry garage, misc. windows, Bedroom 5 in place of the standard loft, Bonus Room in place of two story family room (adds 387 sf), third bath, buddy bath between bedrooms 3 and 4. Also affordably add a three car side load garage and/or full brick on all sides. See customization options at checkout.
