PLAN ID: DPX523464

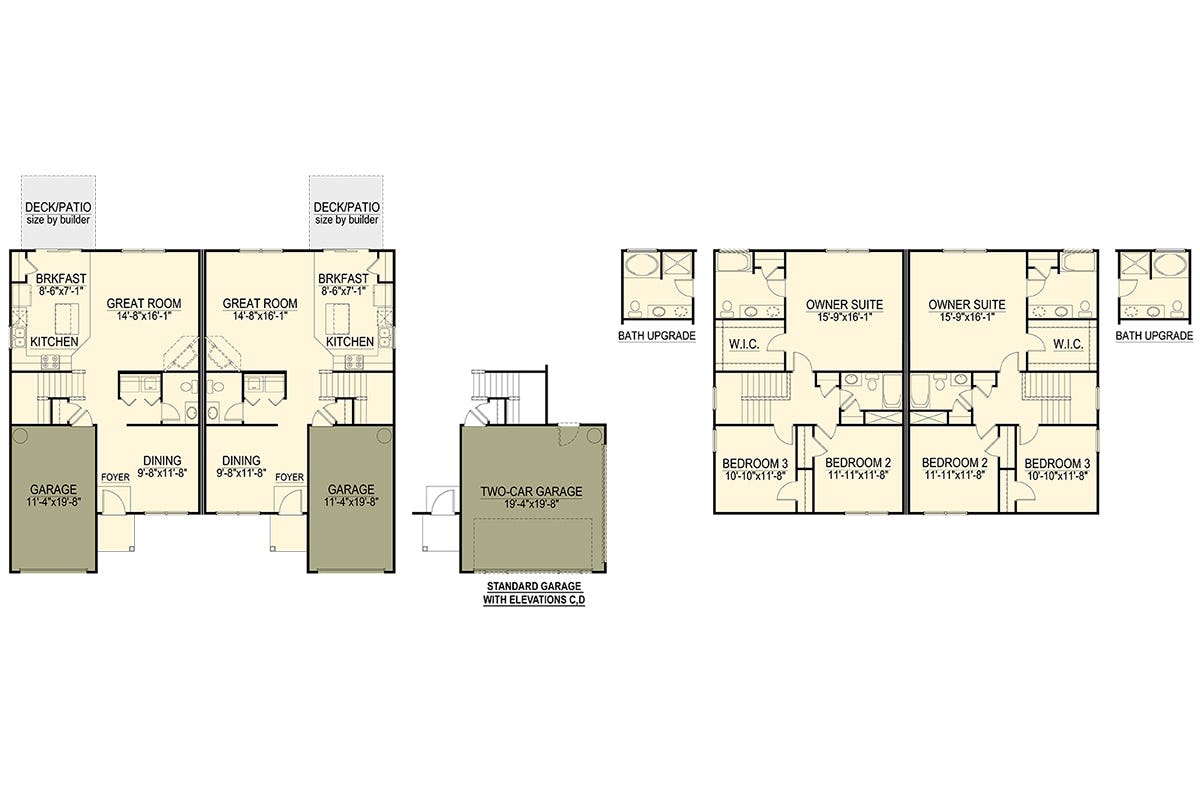

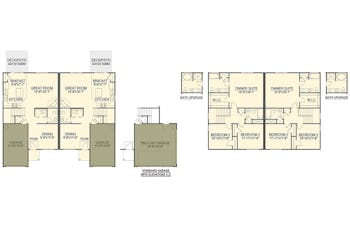

This 2-story Duplex unit is a narrow unit plan that gives the builder an option for a small lot size. Each 1732sf unit is designed to be open and flexible. The open Kitchen and Great Room allows for comfortable family time, while the second floor owner's suite provides the opportunity for privacy and includes a spacious walk-in closet. elevations A & B are designed for a single-car garage while opting for elevations C & D allows for a two-car garage. With this plan's design and function, it is a must build for the value builders.
2-Story, Duplex
Square Feet: 3,464
Footprint: 52-0 x 44-0

One elevation is included

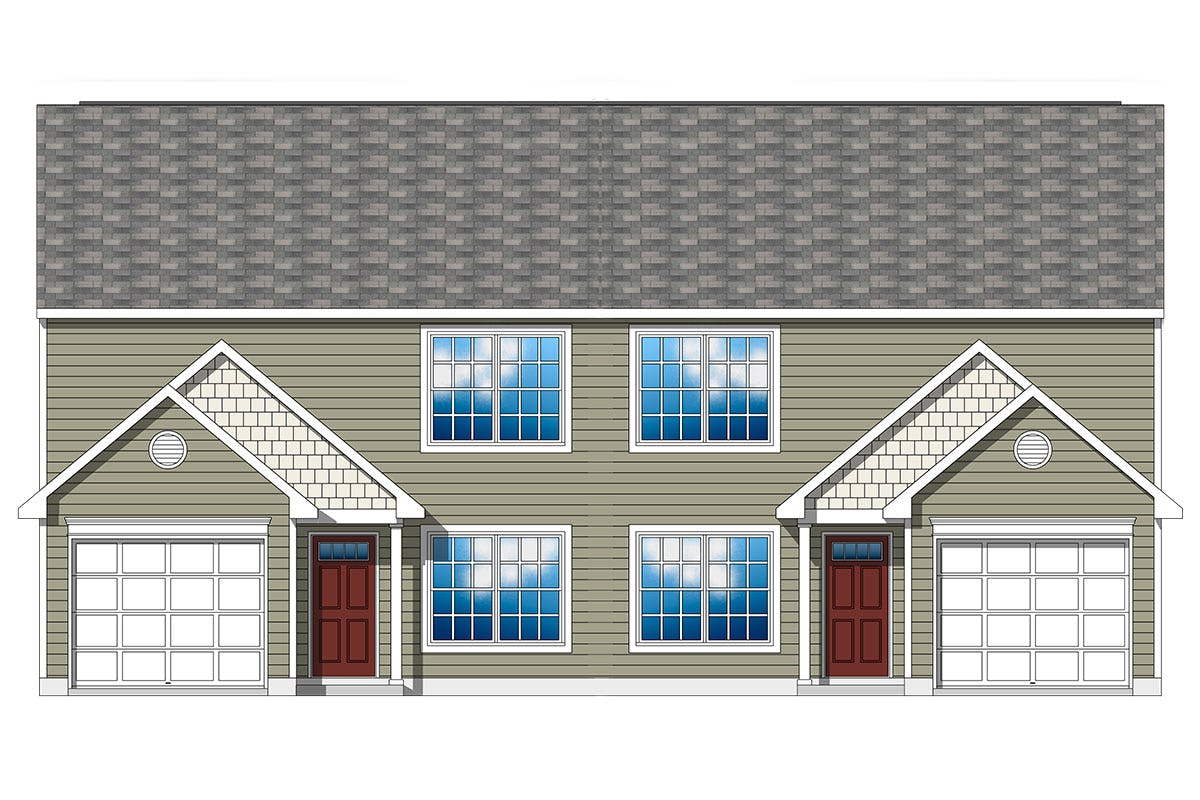

Elevation A

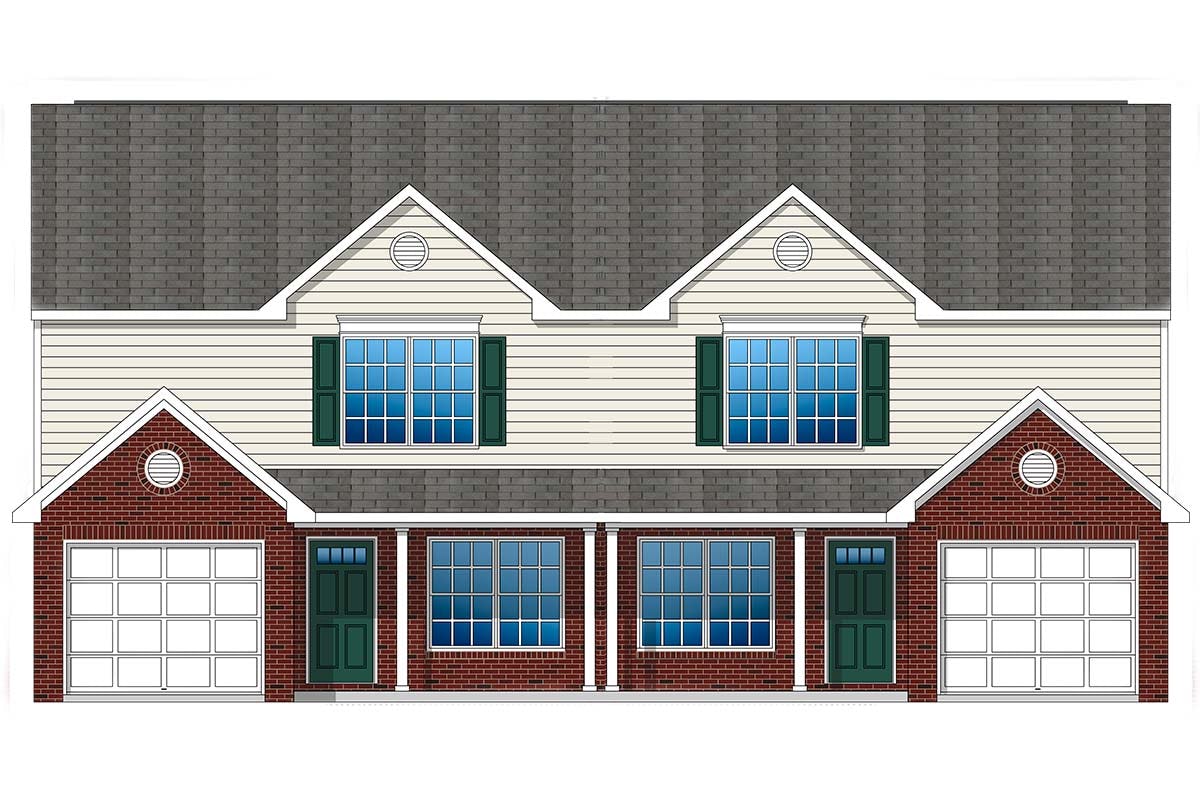

Elevation B

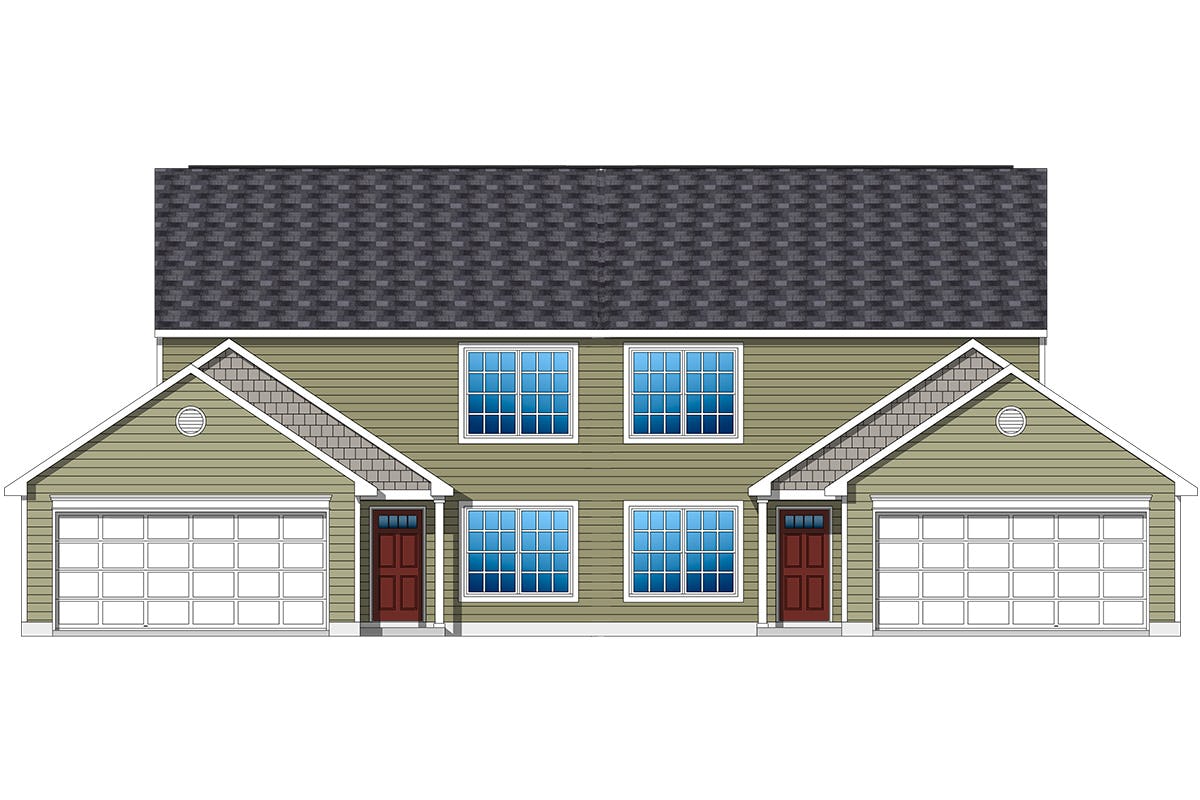

Elevation C

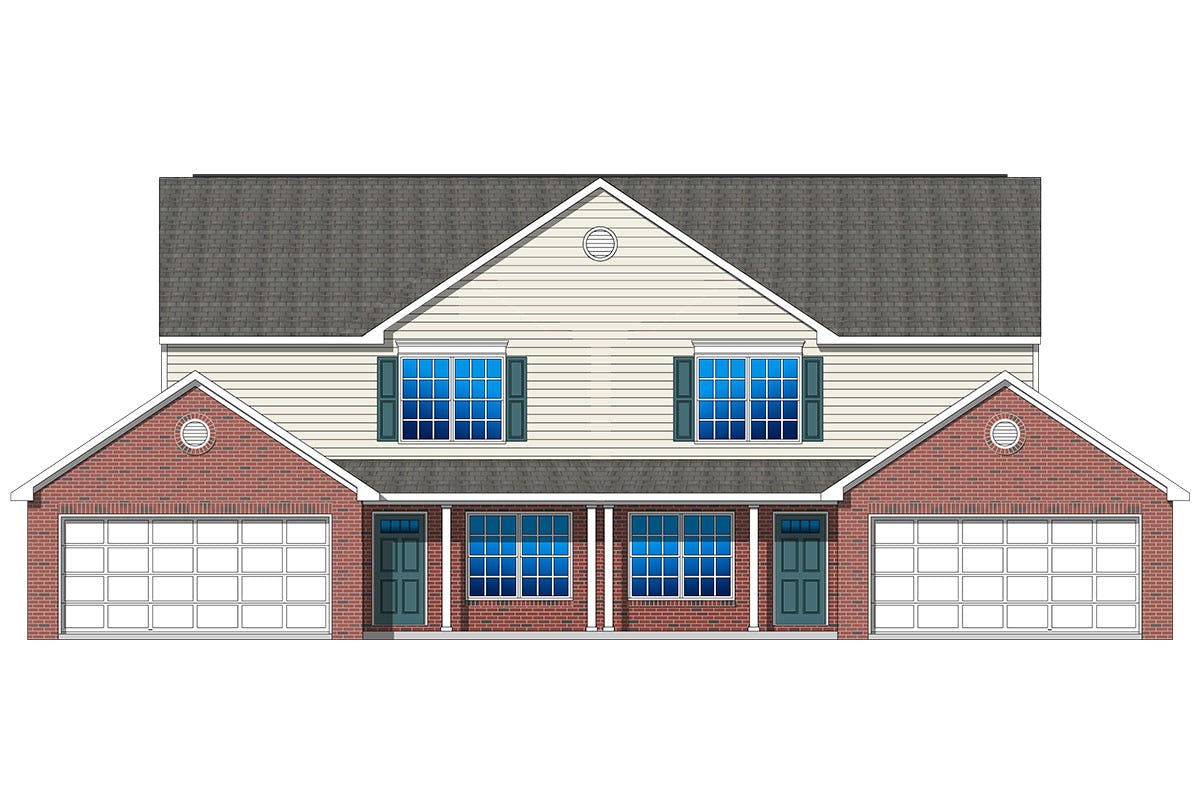

Elevation D

One foundation is included

Plan Specifications
Max Square Feet: 3,464
Base Footprint: 52-0 x 44-0
Max Footprint: 68-0 x 44-5
Owner Bedroom: 15-9x16-1
Great Room: 14-8x16-1
Bedrooms: 3
Baths: 2.5
Typical Roof Pitches:
  • Front To Back: 6/12
  • Return Gables: 10/12
Ceiling Heights:
  • First Floor: 8ft. w/opt. 9ft
  • Second Floor: 8ft.
Included Plan Options
Great Room Fireplace, 9ft. Ceilings(1st Floor), Owner Suite Bath Upgrade, 2-Car Garage w/Elevations C & D
